Basic Understanding of Peoplesoft Security -

Why PeopleSoft Security

                        Why PeopleSoft Security Peoplesoft is a world-famous client-server application suite based on client-server architecture. Just like any other ER system, Peoplesoft is also based on backend RDBMS, which can either be Oracle, DB2 etc, based on client environment.

As Peoplesoft is a reputed HRMS suite, Security is mandatory , as the data mainly deals with personal information such as SSN, credit card etc, so there should be sufficient provision of security towards data accesses, having said that, they should also be able to access the data at the same time and generate appropriate reports as per user requirements on a “need to know basis”.

This holds good both in terms of data access provided to the software developers, as well as to the end-users who will be accessing it.

All users are not exposed of the same access towards the application and only authorized user have the access to application servers.

The PeopleSoft Internet Architecture falls into the category of PeopleSoft online security, also referred to as runtime security, which suggests that only authorized users can hook up with the online and application servers, and only authorized application servers can hook up with a given database.

PeopleSoft Security

Ø  The PeopleSoft security approach is tailored specially for the internet.

Ø  Security People Tool enables the provision of security to all of the users of the PeopleSoft system.

Ø  Using the Definition Security People Tool we can restrict access to the objects developers created in PeopleSoft Application Designer.

Terms Used while implementing Peoplesoft Security

USER ID          - Enables access to system.

                      -  Authenticates, Authorizes.

ROLE             -   A named set of work that a user can do.

                     -   Works in conjunction with Workflow.

                     -   Comprised of “1 or more” Permission Lists.

PERMISSION

LIST               - Defines the pages to which the employee is

Different types of Security

Sign on and Time-out Security:-

                  User is asked to enter User ID and a password on the PeopleSoft Sign on page, when signing into PeopleSoft. For a valid ID and password, PeopleSoft connects the user to the application and the system retrieves the appropriate user profile. When a user signs on, they are connected as long as their sign on time allows and as long as their browser doesn’t sit idle for longer than their time-out interval is achieved.

Page and Dialog Security:-

             Page and Dialog Security is used for granting access to PeopleSoft menus, Users can be controlled from accessing the data with the help of People tool Security.

Batch Environment Security:-

      For running a batch Processes from PeopleSoft Process Scheduler, appropriate Process Profile to the User Profile should be assigned along with proper process groups.

      Each batch program has a run control that we define before we can run the batch program.

Definition Security:-

             For restricting the access of application developers, a separate People tool called ‘Definition Security’ is used , which can be used to govern access to the Record definitions, Field definitions, but Page definitions as well.

Application Data Security:-

     Definition Security is a type of data security- which can be used to control access to object definitions in the People tool tables. We can set data permissions at the following levels:

Ø  Query/Table-Level Security:-  Query/Table- Level Security helps us to build SQL   queries to retrieve information from application tables.

Ø  Row-Level Security:-  Row Security Permission list is used to define data security to users.

Field Security:-  We can restrict the access to particular fields or columns within our application tables by using People code.

Basic Steps for assigning Permission Lists to Roles and Roles to User Profiles

Ø  Create Permission Lists

Ø  Create Roles

Ø  Assign Permission Lists to the Roles

Ø  Create User IDs

Ø  Assign Roles to User ID’s

Flow of Security

Permission Lists

Permission Lists are the building blocks of user security authorization. Permission lists allow the developer to grant user access not only to PeopleSoft Pages, but they allow us to grant access to development environments, sign on time periods, administrative tools, personalizations etc. as well.

• The fewer Permission Lists used the more modular and scalable the PS security will be.

• Multiple Permission Lists can be assigned to a single

Navigation: People Tools>Permissions and Roles>Permission Lists

The different steps involved in working with permission lists are:-

Ø  Create a new permission list.

Ø  Copy permission lists.

Ø  Delete permission lists.

To create a new permission list:-

Ø  Select People Tools, Security, Permissions & Roles, Permission Lists.

Ø  On the search page click Add a New Value.

Ø  In the Permission List edit box, enter the name of Permission List you want to create.

Ø  From the pages in the Permission List component, select the appropriate permissions.

Ø  Save your work.

Copying Permission Lists:-

Ø  Select People Tools, Security, Permissions & Roles, Copy Permission Lists.

Ø  In the search page, search for the Permission List that you want to copy, and click it.

Ø  On the Permission List Save As page, enter a new name in the to: edit box for the Permission List that you want to copy.

Ø  Click Save.

Deleting Permission Lists:-

Ø  Select People Tools, Security, Permissions & Roles, Delete Permission Lists.

Ø  On the search page, locate the Permission List that you want to delete and click it.

Ø  The Delete Permission List page appears.

Ø  Click Delete Permission List.

Ø  Click OK to confirm the deletion, or click Cancel to end without deleting

Permission Lists – General page

PeopleSoft Navigation for managing General information of a Permission List

Permission Lists – Pages page

PeopleSoft Navigation for managing General information of a Permission List

Permission Lists –Pages–Edit Components

PeopleSoft Navigation for managing accesses of a Permission List to specific Pages, and ability of a user to edit them

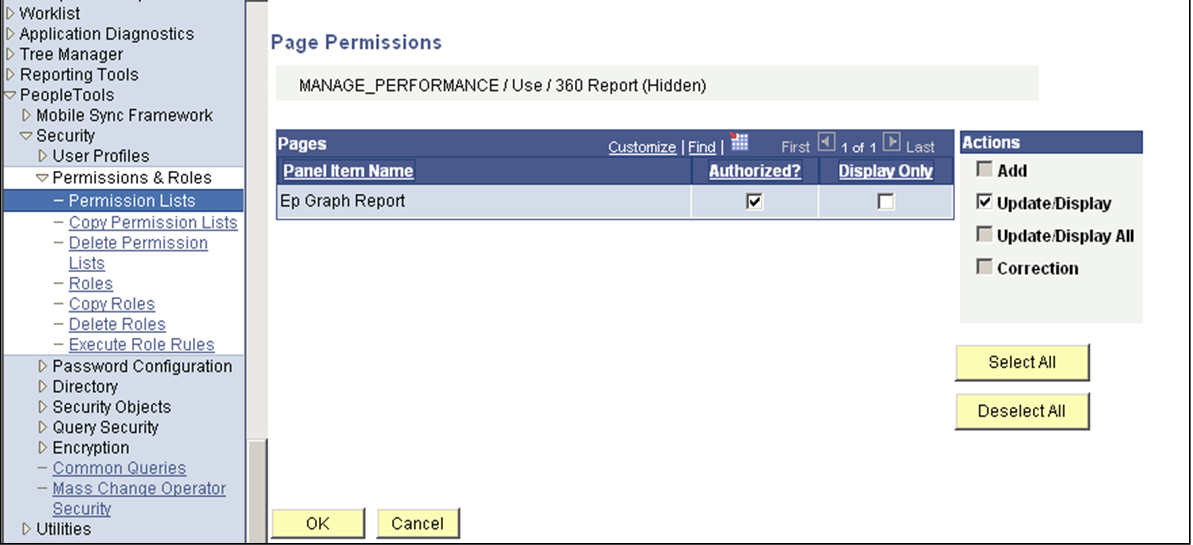

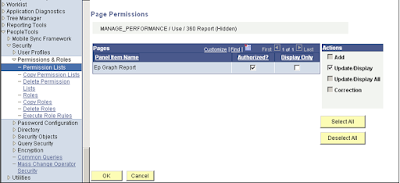

Permission Lists– Pages – Page Permissions

PeopleSoft Navigation for managing additional accesses of a Permission List to specific Pages

Permission Lists – People Tools page

PeopleSoft Navigation for managing accesses of a Permission List to specific Peopletool objects

Permission Lists – Queries page

PeopleSoft Navigation for managing accesses of a Permission List to specific Peopletool objects

Sign-on Times

Peoplesoft can also inhibit users to perform sign on, on the basis of date time condition

Roles

• Roles are assigned to User Profiles and they are the intermediate objects that link User Profiles to Permission Lists

• Multiple roles can be assigned to a single User Profile. Examples: Applicant, Employee, Vendor, Accounts Payable Clerk, and Manager

• Roles allow you to mix and match access to your PeopleSoft system and can be assigned to User Profiles manually or dynamically.

Navigation: People Tools>Permissions and Roles>Roles

There are three steps for working with roles. They are:-

ØCreate a new Role

Ø  Copy a role.

Ø  Delete a role.

Creating a New Role:-

ØSelect People Tools, Security, Permissions & Roles, Roles.

Ø  On the search page click add a New Value.

Ø  In the Role Name edit box, enter the name of role you want to create, and click Add.

Ø  From the pages in the Roles component select the appropriate role options.

Ø  Save your work.

Copying Roles:-

Ø  Select People Tools, Security, Permissions & Roles, Copy Roles.

Ø  On the search page, search for the role that you want to copy (clone), and click it.

Ø  The Role Save as page appears.

Ø  On the Role Save As page, enter a new name in the as: edit box.

Ø  Click Save.

Deleting Roles:-

Ø  Select People Tools, Security, Permissions & Roles, Delete Roles.

Ø  On the search page, locate the Permission List that you want to delete and click it.

Ø  The Delete Permission List page appears.

Ø  Click Delete Permission List.

Ø  Click OK to confirm the deletion, or click Cancel to abort.

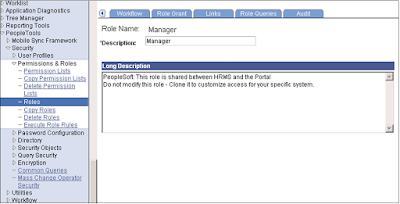

Roles – General

Peoplesoft Navigation for managing general information of Roles

Roles – Assign Permission Lists

Peoplesoft Navigation for managing Permission List information for Roles

Roles – Members

Peoplesoft navigation which gives information of all the User IDs which are assigned to the specific Role

Roles – Workflow

Peoplesoft navigation for managing the Workflow information

Roles – Queries

Navigation gives cumulative information about the Roles.

User Profiles

Ø  Users are assigned with collection of roles which defines the individual users of your PeopleSoft system

Ø  Set of data describing a particular user of your PeopleSoft system

Ø  Information about the user such as e-mail address, language code, and password

Ø  Assign process profiles, row-level security or business unit security at the User Profile level

Ø  User Profiles are linked to Roles to grant access to specific areas within the PeopleSoft application

Navigation: People Tools>User Profiles>User Profiles

Working with User Profiles:-

Ø  Create a new User Profile.

Ø  Copy a User Profile.

Ø  Delete a User Profile.

Creating a New User Profile:-

Ø  Select People Tools, Security, User Profiles, User Profiles.

Ø  On the Find Existing Values page, click Add a New Value.

Ø  On the Add a New Value page, enter the new User ID in the User ID edit box, and click Add.

Ø  The User ID can contain up to 30 characters. The name you use can't contain a comma (,) or       space. Also, you can't create a User ID named PPLSOFT; this ID is a reserved user ID used         within People Tools.

Ø  Specify the appropriate values from the pages in the User Profiles component, and click Save.

Copying a User Profile:

Ø  Select People Tools, Security, User Profiles, Copy User Profiles.

Ø  On the Find an Existing Value search page, select the User ID you want to clone.

Ø  On the User Profile Save As page, enter the New User ID, description, and the password that the new user ID should use to sign on to the system.

Deleting a User Profile:-

Ø  Select People Tools, Security, User Profiles, Delete User Profiles.

Ø  On the Delete User Profile page, make sure you have selected the correct user profile.

Ø  Click Delete User Profile.

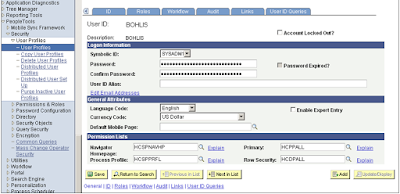

User Profiles – General

Peoplesoft navigation where User is assigned with Permission List

User Profiles – Roles

Peoplesoft navigation where User is assigned with specific Roles

User Profiles – Audits

Navigation gives the information on Audit.

User Profiles – User ID Queries

Navigation gives cumulative information about the User ID.

Authorization IDs

             The PeopleSoft System uses various authorization ID’s and passwords to control user access to the system.

User IDs:-

             A PeopleSoft User ID is the ID you enter at the PeopleSoft sign on dialog box. Using People Tools Security, you assign each PeopleSoft user a User ID and password. The combination of these two items grants users online access to the PeopleSoft system. The system can also use a User ID stored within an LDAP directory server.

             The User ID is the key used to distinctly identify the User Profile definition.

Connect IDs:-

             People Tools offers a connectivity feature called Connect ID. Initial connection to the database is performed by Connect ID. A Connect ID is a valid user ID that, when used during login, takes the place of PeopleSoft User IDs for the logon process. We don’t have to create a new database user for every PeopleSoft user you add to the system.

Connect ID is required for a direct connection (two-tier connection) to the database.

Access IDs:-

             The PeopleSoft Access ID is the RDBMS ID with which PeopleSoft applications are ultimately connected to the database after the PeopleSoft system gets connects.

An Access ID typically has administrator-level database access; that is, it has all the RDBMS privileges necessary to access and manipulate data for an entire PeopleSoft application. The Access ID should have SELECT, UPDATE, and DELETE access.

It's important to understand that users do not know their corresponding Access ID. They just sign on with their User ID and password and—behind the scenes—the system logs them onto the database using the Access ID.

Access Profiles are used in the following situations only: when an application server connects to the database, when a windows workstation connects directly to the database, and when a batch job connects directly to the database.

Access Profiles are not used when end users access the applications through PIA.

Symbolic IDs:-

            The Symbolic ID acts as an intermediary entity between the User ID and the Access ID.

All the User IDs are associated with a Symbolic ID, which in turn is associated with an Access ID.

when the Access ID needs to be retrieved or referenced, the query selects the appropriate Access ID by using the Symbolic ID as a search key.

PeopleSoft Security Tables

Different tables that are involved in PeopleSoft Security are:-

Ø  PSROLECLASS: Role Classes table. A many to many relationship table between Roles and Permission Lists.

Ø  PSROLEDEFN: This table stores information about PeopleSoft Role definitions. Users get permissions to PeopleSoft objects through Roles, which are assigned Permission Lists.

Ø  PSROLEUSER: This table stores information about the Users in PeopleSoft and the roles assigned to them.

Ø  PSCLASSDEFN: Permissions List definitions table. Permission list name can be found under Field Name CLASSID.

Ø  PSOPRDEFN: Users/Operator definition table. This table stores information about PeopleSoft users. This is the core table for User Profile Manager.

    References

                 http://www.peoplesoft.com

                People Books the proprietary documentation provided by PeopleSoft Enterprise.
